QB 130

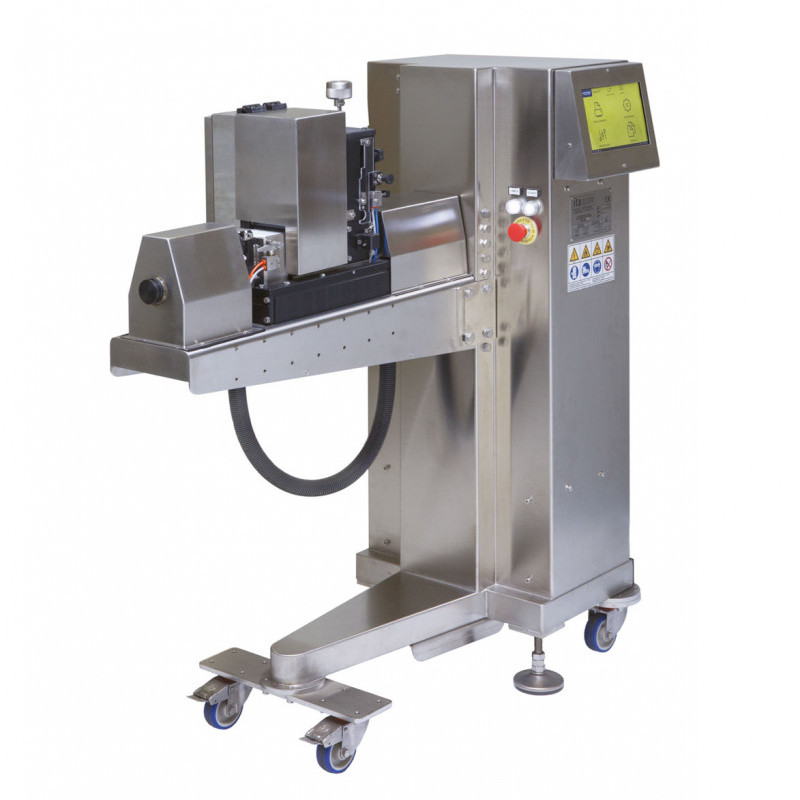

Lillosigillo application machine with thermal transfer variable data printing for XXL and Jumbo formats.
Technical information
EC-certified
Variable data printing on the back of the seal
Available in various models
Thermal transfer printing
Windows-compatible software
Description
The label applicator is available in various models depending on the format of: Lillosigillo® XXL (40×50 mm) or Lillosigillo® Jumbo (55×80 mm)
The Lillosigillo® is pre-printed on one side only as the reverse side is printed when sealed by the machine.
The label applicator is integrated with the thermal transfer printer for printing all variable data, including the nutrition declaration/table.
Windows-compatible software for managing texts and all major barcodes; to be installed on a PC.
System features:
- Printing of variable data on the back of the seal at the same time that the product is sealed
- Thermal transfer printing
- Windows-compatible software for text management
- Tablet for file editor
- The types of compatible barcodes are as follows: EAN8-EAN13-EAN128-CODE 39-CODE128-CODEBAR-COMPRESSED-DATALOGIC-BCD-FEM-BAR-INDU-ITF-MATRIX-NW7-UPC-JAN (EAN)
- File retrieval and variable data entry are typed on the tablet installed on the label applicator
- EC-certified
Technical Data
| Materials: | Stainless steel |
| Welding: | Ultrasonic |
| Measurements: | 535x1030x1200mm |
| Electric current: | 230 V 50/60 Hz |
| Data printing: | Ink |
| Mounted on: | Wheels |
